Otago HCS (High Capacity Storage)

On this Page

  • To see where HCS fits within Storage check out Storage Overview
  • What is HCS (High Capacity Storage)
  • How to mount HCS on the Login node
  • How to mount HCS on the cluster nodes
  • How to Generate Auto Renewal Kereberos Tickets.

HCS is the main data storage pool on the Otago campus. HCS is able to be mounted on desktop and lab computers. It is possible to mount HCS shares on the Cluster Login node to transfer data across but the connection is sub-optimal for high-speed computing and cannot (easily) be mounted across nodes in the cluster. We recommend that you use the HCS for your primary storage needs and transfer your data to your working area in /projects/ when you want to work on it, and transfer results back to HCS for long term storage.

Note

If you do not have an HCS share available for your department/group, please fill out the HCS Access Form .

Methods for Accessing HCS

How you access your data on the HCS will depend upon your use case. The 3 main use cases are detailed below

  1. Accessing HCS shares from within an OnDemand HPC desktop session - Good for being able to explore your files in a file browser
  2. Accessing HCS share from the login node - Good for moving/copying small amounts of data, or browsing on the commandline
  3. Accessing HCS shares from a compute node - Good for when you want need to access data on HCS as part of a job

Info

For best performance it is best to have a copy of the data you want to use on the research storage. For large transfers this is best done with Globus

Accessing HCS within the OnDemand HPC Desktop

Accessing the HCS within an OnDemand HPC Desktop session is useful for when you want to be able to browse your files in a graphical file browser, or for moving/copying moderate amounts of data to/from the HCS.

SMB Local Mount from HPC Desktop GUI

  1. Start an Otago HPC Desktop
  2. Open a Terminal window on the desktop
  3. Type "kdestroy" to remove invalid older tickets
  4. Type "kinit" and Enter your password
  5. Open File browser window
  6. Connect and login to HCS by entering the smb://username@storage.hcs-p01.otago.ac.nz/share-name address
  7. When the authentication window appears type in the domain "registry" if staff or "student" if you are using a student account, and your password
  8. Press connect and wait a few seconds for authentication and your HCS files to appear in the window.

Note

It can sometimes take up to 1 minute for the authentication process to complete

Connecting to HCS - create kerberos ticket with kinit

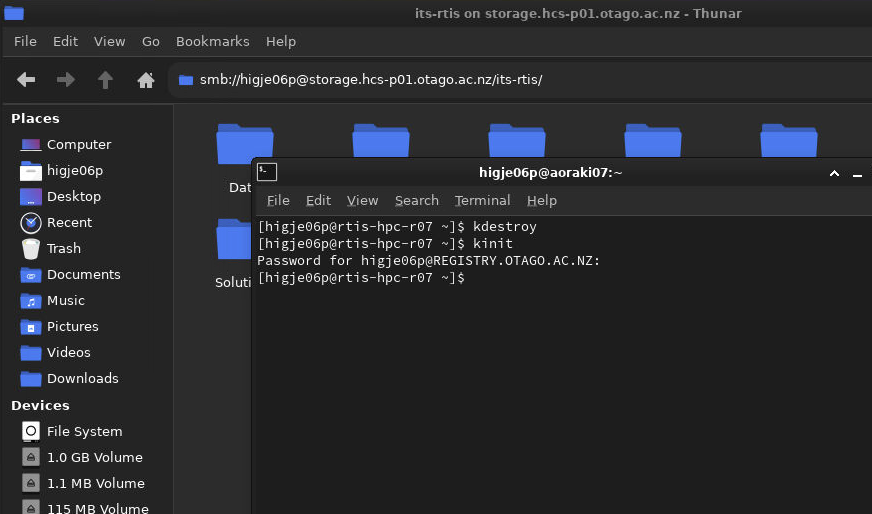

Figure 1: Connecting to HCS - create kerberos ticket with kinit

Connect to HCS - authenticating using samba in the file browser

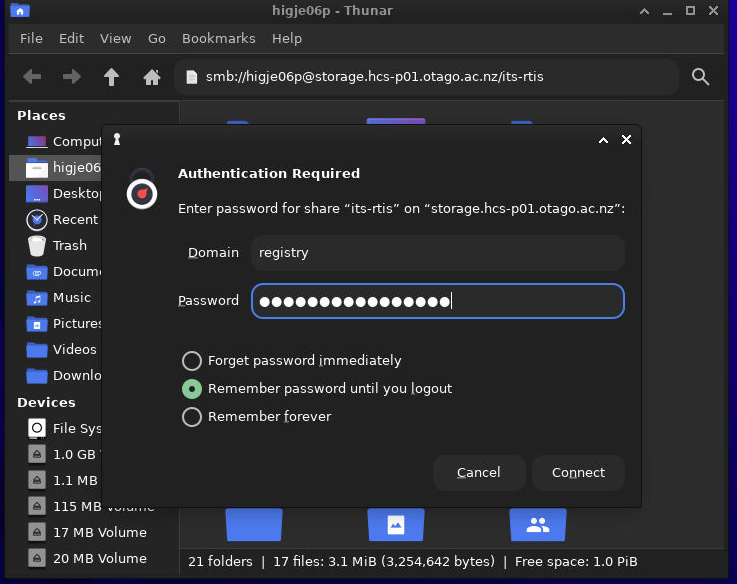

Figure 2: Connect to HCS - authenticating using samba in the file browser

Connect to HCS - browsing hcs files in file browser

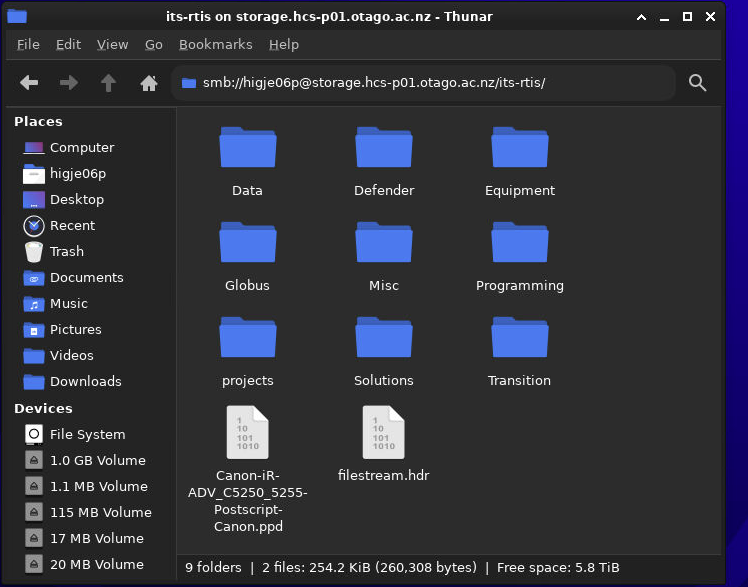

Figure 3: Connect to HCS - browsing hcs files in file browser

Accessing HCS on the Login node

For small one job data transfers, you can mount your HCS share on the login node. This is not recommended for large data transfers or for data that will be used in a job as the connection is not optimal for high-speed computing. It can also be mounted on an HPC desktop for smaller data sets and transfers.

To mount your HCS share on the login node, you will need to have a valid Kerberos ticket. If you do not have a valid Kerberos ticket, you can generate one by running the kinit command and entering your University password.

Otago HCS (High Capacity Storage) shares can be accessed on the cluster provided you have security access and obtain a Kerberos ticket (password authentication). To access your HCS share: 1. Check if you have a kerberos ticket klist. If not, obtain Kerberos ticket kinit and entering your University password. 3. Navigate to your HCS share /mnt/auto-hcs/<your_share_name> (the last portion of the HCS address) eg. if my share is \\storage.hcs-p01.otago.ac.nz\its-rtis then navigate to /mnt/auto-hcs/its-rtis

Occasionally, it may take up to a minute for this access to become available after running kinit.

Otago MDS storage (Windows Managed Desktop Share) can be access on the cluster if you have a Kerberos ticket. To access your MDS share: 1. Check if you have a Kerberos ticket klist. If not, obtain Kerberos ticket kinit and entering your University password. 2. Navigate to your HCS share /mnt/auto-mds/<your_first_inital_of_your_username>/<your_username> (the last portion of the HCS address) eg. if my MDS share is \\registry.otago.ac.nz\mdr\Profiles-V2\h\higje06p then navigate to /mnt/auto-mds/h/higje06p

Note

It can sometimes take up to 1 minute for the authentication process to complete after logging in and your HCS share to be available through this method

Accessing HCS on the cluster nodes - Auks

The Auks Slurm plugin enables users to save their Kerberos ticket from the login node onto the Auks server. This saved ticket can then be used on any Slurm compute node to access HCS shares. The Kerberos ticket is automatically renewed by Auks and remains valid for up to 7 days. After this period, the ticket must be manually renewed. Once a user saves their Kerberos ticket, the renewal process happens automatically.

Whenever a user logs in to the Aoraki login node using their password, a new krbtgt (Kerberos Ticket-Granting Ticket) is issued. However, if the user logs in via SSH keys or accesses nodes through the OnDemand shell, they must manually obtain a new valid ticket by running the kinit command. When you type your password after running the kinit command, the terminal intentionally suppresses any visible feedback. Confirm your password by pressing Enter key.

Terminal

kinit userx01p@REGISTRY.OTAGO.AC.NZ
Password for userx01p@REGISTRY.OTAGO.AC.NZ:

Terminal

kinit studx012@STUDENT.OTAGO.AC.NZ
Password for studx012@STUDENT.OTAGO.AC.NZ:

A krbtgt (Kerberos Ticket-Granting Ticket) is valid for 10 hours, as indicated by the "Expires" date and time. During this period, the ticket can be renewed using the kinit -R command. This renewal extends the "Expires" time but does not change the "Renew Until" date and time. The Auks system handles this renewal process automatically for the user.

As long as a user has a valid krbtgt ticket, they can communicate with the Auks server seamlessly.

Check if you have a valid krbtgt ticket:

Terminal

[studx012@aoraki-login ~]$ klist

Ticket cache: KCM:40005987:63840
Default principal: studx012@STUDENT.OTAGO.AC.NZ

Valid starting Expires Service principal
11/26/2024 08:56:14 11/26/2024 18:56:14 krbtgt/STUDENT.OTAGO.AC.NZ@STUDENT.OTAGO.AC.NZ
    renew until 12/03/2024 08:56:14

[studx012@aoraki-login ~]$ kinit -R
[studx012@aoraki-login ~]$ klist

Ticket cache: KCM:40005987:63840
Default principal: studx012@STUDENT.OTAGO.AC.NZ

Valid starting Expires Service principal
11/26/2024 11:22:40 11/26/2024 21:22:40 krbtgt/STUDENT.OTAGO.AC.NZ@STUDENT.OTAGO.AC.NZ
    renew until 12/03/2024 08:56:14

Ping server to verify connection:

Terminal

[studx012@aoraki-login ~]$ auks -p

Auks API request succeed

Save current krbtgt on the auks server:

Terminal

[studx012@aoraki-login ~]$ auks -a

Auks API request succeed

Now you can use --auks=yes option with srun or #SBATCH --auks=yes in you slurm batch script:

Terminal

srun --auks=yes --partition=aoraki ls -lah /mnt/auto-hcs/hcs_share_name

HCS shares are automatically mounted on each node when requested. The user's krbtgt, retrieved from the Auks server, is used to generate Kerberos tickets for communication with the HCS storage servers. However, obtaining these tickets can take some time. If the HCS share is not yet mounted on the node, the job or script may fail.

To mitigate this, it is recommended to include a command such as sleep 20 in batch scripts before accessing the automounted share.

Generating Auto Renewal Kerberos Tickets

Info

If you want to keep using your data over hours or days you will need to renew your Kerberos ticket. Kerberos tickets are only valid for 1 hour and then need to be renewed either by generating one via the command line or automatically by generating a keytab file and setting a cronjob to renew the ticket at a specified interval.

To see if you have a valid Kerberos ticket you can type klist

  1. You do not have a valid ticket if you get a message like: klist: Credentials cache 'KCM:51776880' not found
  2. You do have a ticket if you get a message similar to:

Terminal

klist

Ticket cache: KCM:51776880 Default principal: higje06p@REGISTRY.OTAGO.AC.NZ

Valid starting     Expires            Service principal
27/09/23 15:01:57  28/09/23 01:01:57  krbtgt/REGISTRY.OTAGO.AC.NZ@REGISTRY.OTAGO.AC.NZ
    renew until 04/10/23 15:01:57

To generate an auto renewing ticket (so as to not expire):

  • Create a keytab file - replace username with your otago username:*

Terminal

ktutil

ktutil: addent -password -p <username>@REGISTRY.OTAGO.AC.NZ -k 1 -e aes256-cts (enter your password)
Ktutil: wkt /home/<username>/<username>.keytab
Ktutil: quit
  • To test: kinit *username*@REGISTRY.OTAGO.AC.NZ -k -t 'username'.keytab
  • klist (to check if ticket is valid)
  • Then create a cronjob to renew your ticket crontab -e then enter the following line to renew your ticket every hour: 0 * * * * kinit *username*@REGISTRY.OTAGO.AC.NZ -k -t /home/*username*/*username*.keytab
  • Ensure the permissions on your .keytab file are 0600 to keep it secure!

Terminal

klist

Ticket cache: KCM:51776880 Default principal: higje06p@STUDENT.OTAGO.AC.NZ

Valid starting     Expires            Service principal
27/09/23 15:01:57  28/09/23 01:01:57  krbtgt/STUDENT.OTAGO.AC.NZ@STUDENT.OTAGO.AC.NZ
    renew until 04/10/23 15:01:57

To generate an auto renewing ticket (so as to not expire):

  • Create a keytab file - replace username with your otago username:*

Terminal

ktutil

ktutil: addent -password -p <username>@STUDENT.OTAGO.AC.NZ -k 1 -e aes256-cts (enter your password)
Ktutil: wkt /home/<username>/<username>.keytab
Ktutil: quit
  • To test: kinit <username>@STUDENT.OTAGO.AC.NZ -k -t 'username'.keytab
  • klist (to check if ticket is valid)
  • Then create a cronjob to renew your ticket crontab -e then enter the following line to renew your ticket every hour: 0 * * * * kinit <username>@STUDENT.OTAGO.AC.NZ -k -t /home/<username>/<username>.keytab
  • Ensure the permissions on your .keytab file are 0600 to keep it secure!

What's next?

Find out how to move Data on and off the Research Cluster on Data Transfer
